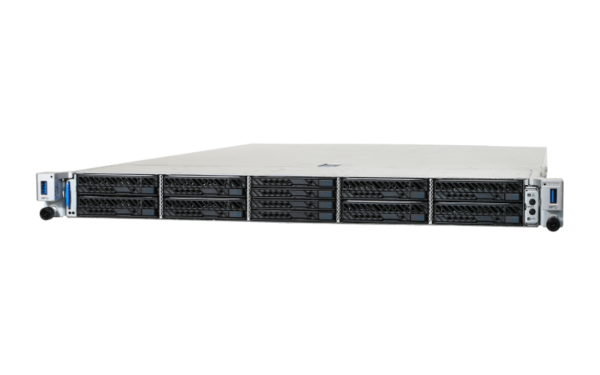

QuantaGrid D55X-1U

Loading...

Versatile server for every workload, tailored to diverse application.

  • Powered by (2) Intel Xeon 6 CPU.
  • (32) DDR5 RDIMM up to 6,400 MHz, (16) MRDIMM up to 8,000 MHz.
  • Multiple storage options include 2.5”, E1.S SKU.
  • Flexible network options with (2) OCP 3.0 SFF slots.
  • Up to (3) PCIe 5.0 x16 expansion in a 1U chassis for diverse device support.
  • Wide range of MCRPs, CRPs PSU support from 800W to 2700W.
  • (7+1) 4056 fan for advanced air cooling.
  • DC-MHS (M-FLW) as reference.
  • Inhouse OpenBMC for comprehensive management.
  • Liquid Cooling available.
  • Optimized serviceability with tool-less, hot-plug design.
  • NEBs compliance for Telco/5G deployment.



Loading...

Overview

Ultimate Compute Performance and Workload-driven Architecture





  • Powered by (2) Intel Xeon 6700E, 6500P, 6700P-series CPU.

    Design refers to DC-MHS M-FLW (Modular Hardware System Full Width Specification).

    (32) DDR5 RDIMM up to 6,400 MHz-1DPC, 5,200 MHz-2DPC , (16) MRDIMM up to 8,000 MHz- 1DPC.

    1+1 800W, 1600W, 2000W, 2700W CRPs PSU support.



Achieve scalability, flexibility and capability within a 1U system

  • Multiple storage option:

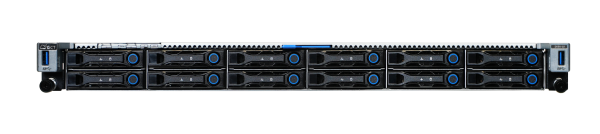

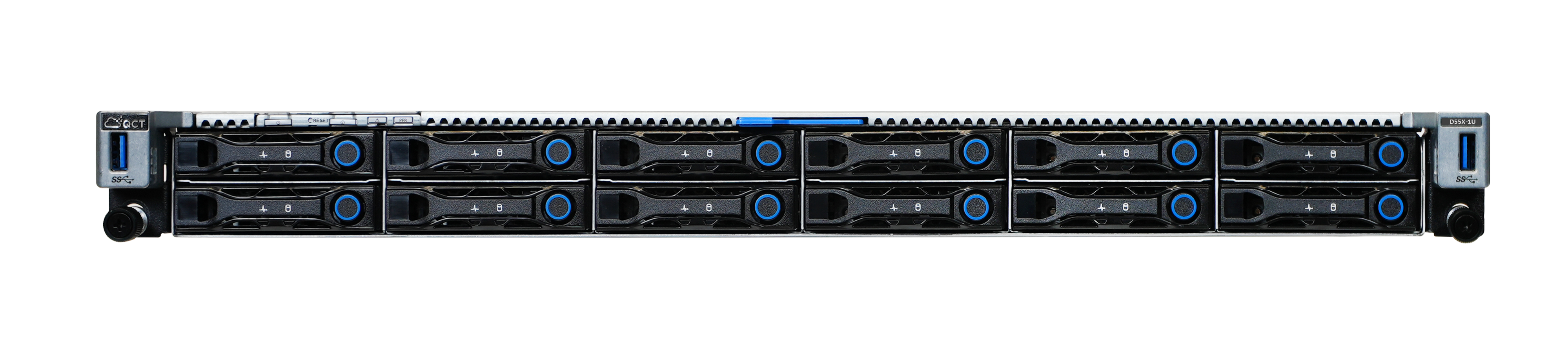

    • (12)2.5” hot-plug NVMe/ SATA/ SAS drives

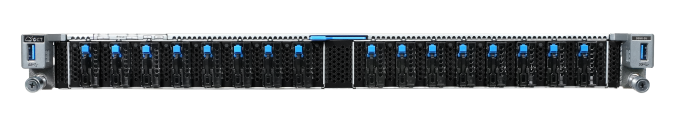

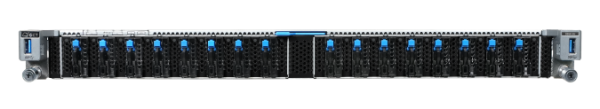

    • (16) E1.S hot-plug NVMe drives

    (2) OCP 3.0 SFF slots support up to 400Gb network card.

    (3) PCIe 5.0 x16 expansion for flexible configurations.



Quick Deployment with Great Serviceability



  • Tool-less, screw-less, modularized, hot-swap designs for easy service

    • Blue Icon:

      Parts with a blue icon, including handles and thumbscrews, are easy service parts.

    • Modularized:

      Modularization makes service more efficient and faster to change and fix.

Easy Management



  • Delivers secure and dynamic data administration for data center resources with Orqestra (QCT System Manager)

    Monitors up to 5000 devices per Orqestra module









Specifications

Processor
Processor Family
Intel® Xeon® 6 processors
Max. TDP Support
350W
Number of Processors
(2) per node
Form Factor
Form Factor
1U
Dimensions
W x H x D (inch)
17.6″ x 1.7″ x 30.7″
W x H x D (mm)
447 x 43.2 x 780
Storage
Default Configuration
(12) 2.5″ hot-plug NVMe/SATA/SAS SSD
SKU – #1
(2) E1.S hot-plug NVMe SSD
Memory
Total Slots
32
Expansion Slot
SKU – #1
(2) PCIe Gen5 x16 FHHL
(2) PCIe Gen5 x16 OCP 3.0 SFF
(1) DC-SCM
SKU – #2
(3) PCIe Gen5 x16 HHHL
(2) PCIe Gen5 x16 OCP 3.0 SFF
(1) DC-SCM
Front I/O
Front I/O
Power/ID/Reset Buttons/Status LEDs/USB ports
Power Supply
Power Supply
1+1 High efficiency redundant hot-plug 1600W/2000W/2700W 80 Plus Titanium
Fan
Fan
(8) hot-plug system fans
Video
Video
Integrated AST2600
Maximum display resolution is up to 1920x1080p 32bpp@60Hz
Rear I/O
Rear I/O
ID/ PFR/PWR LED
PWR Button
(1) USB ports
(1) Mini display port
(1) COM Port (micro USB type-B)
(1) RJ45 port
Operating Environment
Operating Environment
Operating temperature: -5°C to 55°C
Non-operating temperature: -40°C to 70°C
Operating relative humidity: 5% to 85%, Internal test criteria 20% to 85%
Non-operating relative humidity: 50% to 93%RH, Internal test criteria 10% to 95%
TPM
TPM
Yes (option)
OCP Compliance
OCP Compliance
OCP Compliant
