QuantaGrid D53X-1U

Loading...

Balanced architecture with built-in acceleration and advanced security

  • 3rd Gen Intel® Xeon Scalable processor Ice Lake empowered
  • PCIe Gen 4 platform ready
  • Support up to 200GbE with PCIe x16 Networking bandwidth
  • Upgrade data protection with Intel SGX, Intel® Crypto Acceleration, and PFR (optional)
  • AI acceleration optimized, up to 3 x Tesla T4 GPU support in 1U system
  • Enhanced serviceability with tool-less, hot-swap designs

Powered by
3rd Gen Intel Scalable processor



Loading...

Overview

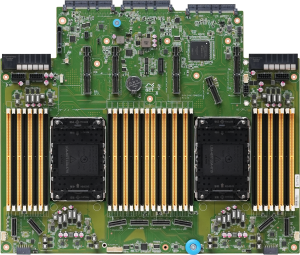

Ultimate Compute Performance and Security Architecture



Performance & Cost Optimized 4-Socket Server



  • 3rd Gen Intel Xeon Scalable Processor Ice Lake based dual socket platform.

  • Up to 3x UPI at 11.2 GT/sec CPU interconnect speed.

  • Advance system cooling support up to 270W CPU TDP per socket

  • Memory capacity up to 8TB with 8 channel DDR4 memory and 12TB with 2nd Gen Intel® Optane™ PMem 200 Series Barlow Pass.

  • Up to 3x Single Width Tesla T4 GPU in 1U system.

  • System optimized for cloud, enterprise, AI, HPC, network, security and IoT workloads.



Flexible and Scalable Configurations



  • Industry most expansions in 1U system with up to 5x PCIe Gen 4 slots, supporting 200GbE networking bandwidth in x16 PCIe Gen 4 slots.

  • Flexible I/O options with a variety of SAS mezzanine and OCP mezzanine options for diverse configurations.

  • Vast variety of storage configurations, supporting All Flash, Tiered and Hybrid SKUs.

  • 2x onboard PCIe M.2 2230 slot.



Enhanced Security

Performance & Cost Optimized 4-Socket Server

  • Chassis intrusion triggered when top cover removed while AC/DC on, to alter and log any possible breach to your QCT servers.

Quick Deployment with Great Serviceability



Upgrade with Higher Computing Performance

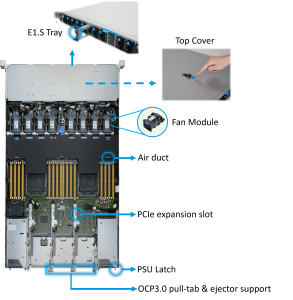

  • Tool-less, hot-swap designs for drive trays, riser brackets and fan modules.

  • Auto back-up BMC event logs in MicroSD without opening chassis.

  • Easy service with OCP3.0 pull-tab & ejector without opening chassis.

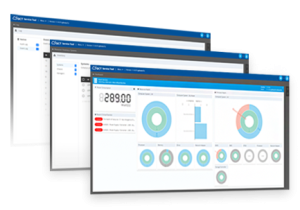

Easy Management with Orqestra



Performance & Cost Optimized 4-Socket Server

  • Secure and dynamic data administration of data center resources with Orqestra

  • Monitor up to 5000 devices per QST (QCT Service Tool).



Certification
  • 80 PLUS TITANIUM
  • 80 PLUS PLATINUM
  • CB-EU
  • CCC-China
  • CE-EU
  • cUL (Canada) (Safety)
  • FCC-ClassA-US
  • VCCI-classA-Japan

Specifications

Processor
Processor Family
3rd gen Intel® Xeon Scalable Family
Processor Type
3rd gen Intel® Xeon Scalable processor
Max. TDP Support
270W
Number of Processors
(2)
Internal Interconnect
11.2GT/s
L3 Cache
Up to 57MB
Form Factor
Form Factor
1U
Dimensions
W x H x D (inch)
17.3 x 1.7 x 30.7
W x H x D (mm)
440 x 43.2 x 780
Chipset
Chipset
C621A Series

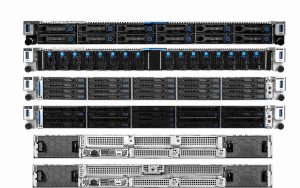

Storage
Default Configuration
2.5″ Hot-plug
3.5″ Hot-plug
SATA/ SAS/ NVME support
SKU – #1
[All Flash SKU]:
(12) 2.5″ hot-plug SATA/ NVMe SSD
SKU – #2
[SFF Tiered SKU]:
(4) 2.5″ hot-plug SATA/SAS drives + (8) 2.5″ hot-plug NVMe/SATA/SAS drives
SKU – #3
[Hybrid SKU]:
(4) 3.5″/2.5″ hot-plug SATA/SAS drives, (4) 7mm NVMe/SATA/SAS drives (optional)
Memory
Total Slots
32
Capacity
Up to 8TB DIMM
Up to 12TB DIMM+PMEM (200 series)
Memory Type
2933 MHz DDR4 RDIMM/LRDIMM
3200 MHz DDR4 RDIMM/LRDIMM
– Intel® Optane™ PMem 200 series (BPS) 128, 256, 512GB supported on selected CPU SKUs
Memory Size
16G, 32G, 64G, 128G, 256G RDIMM/LRDIMM/3DS DIMM
Expansion Slot
SKU – #1
Option 1
(1) PCIe 4.0 x8 OCP 3.0 mezzanine slot SFF
(1) PCIe 4.0 x8 Internal SAS Mezzanine slot
(2) PCIe 4.0 x16 FHHL
SKU – #2
Option 2
(1) PCIe 4.0 x8 OCP 3.0 mezzanine slot SFF
(1) PCIe 4.0 x8 Internal SAS Mezzanine slot
(3) PCIe 4.0 x16 HHHL
Network Controller
LOM
Dedicated (1) GbE management port
Optional NIC
Please refer to our Compatible Component List for more information*
Front I/O
Front I/O
(2) USB 3.0, (1) PWR BTN/LED, (1) ID BTN/LED, (1) Reset BTN, (1) Status LED, (1) PFR LED
Storage Controller
Onboard
Intel® 621A
14x SATA3 6Gb/s ports
SATA RAID 0, 1
Optional Controller
Quanta LSI® PCIe Gen4 3816 12Gb/s SAS mezzanine
Quanta LSI® PCIe Gen4 3916 12Gb/s SAS mezzanine (RAID 0,1,5,6,10,50,60)
Intel® VROC Upgrade Module for PCIe SSD
(Please refer to the CCL for more options)
Power Supply
Power Supply
1+1 High efficiency redundant hot-plug Platinum/Titanium 800W/1200W/1600W AC PSU, Gold 1200W/1600W -48V DC PSU
Onboard Storage
Onboard Storage
(2) 2230/2280/22110 PCIE M.2 on board for Booting OS
Fan
Fan
8x dual rotor fans (15+1 redundant)
System Management
System Management
Redfish v1.9
IPMI v2.0 Compliant, on board “KVM over IP” support
Orqestra (QCT System Manager) (Optional)
Rear I/O
Rear I/O
(2) USB 3.0, (1)RS232 serial port, (1) VGA port, (1)Micro USB (COM port), (1) ID LED, (1)PFR LED, (1) MicroSD
Operating Environment
Operating Environment
Operating temperature: 5°C to 40°C
Non-operating temperature: -40°C to 70°C
Operating relative humidity: 20% to 85%RH
Non-operating relative humidity: 10% to 95%RH
TPM
TPM
TPM 1.2/2.0 SPI module
